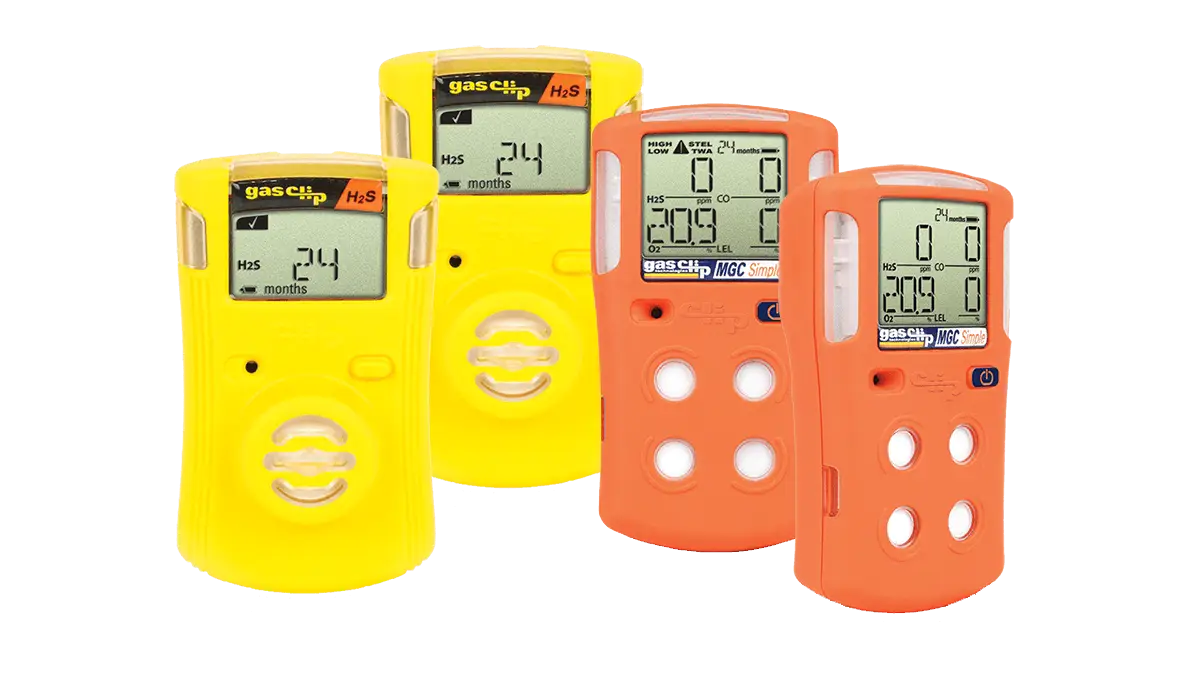

MULTI GAS CLIP SIMPLE

Overview

The two biggest operational failures in any personal gas monitoring programme are not sensor malfunctions or alarm failures — they are flat batteries and missed calibrations. A detector that hasn’t been charged doesn’t protect the worker wearing it. A detector that’s slipped past its calibration interval may not alarm at the right concentration. When you’re managing a fleet of personal monitors across dozens or hundreds of workers, both problems compound: the larger the fleet, the more opportunities there are for individual devices to fall through the cracks of a charging and calibration schedule, and the harder it becomes to guarantee that every worker arrives for shift with a functioning, compliant device.

The Multi Gas Clip Simple from Gas Clip Technologies is built around a different premise: eliminate both problems by design. No charging — ever. No calibration — ever (though it can be calibrated if required). A sealed, always-ready 4-gas detector that monitors H2S, CO, O2, and combustible gas (LEL) continuously for two full years from first activation, then is replaced. It’s a fundamentally simpler approach to fleet gas monitoring that removes the two most common sources of non-compliance at the device level, rather than relying on operational processes and worker discipline to compensate for them.

The concrete differentiator that sets the Multi Gas Clip Simple apart from conventional rechargeable multi-gas detectors is its photometric infrared LEL sensor — a technology choice that is immune to hydrogen sulphide poisoning and silicone poisoning that disable catalytic bead sensors over time. In environments where both H2S and LEL monitoring are required simultaneously, catalytic bead sensors gradually lose sensitivity to H2S exposure — a degradation mode that often goes undetected until a bump test or calibration reveals the problem. The infrared LEL sensor in the Multi Gas Clip Simple is not subject to this failure mode, providing consistent combustible gas detection accuracy throughout the two-year device life regardless of H2S exposure.

Key Features

No Charging, No Calibration — 2-Year Ready-to-Use Operation

The Multi Gas Clip Simple operates for two full years from activation with no battery charging and no mandatory calibration required. The device is powered by an internal battery designed for its 2-year operational life — there is no external charging port, no docking station requirement, and no mid-life battery replacement. The “no calibration necessary” operation is achieved through Gas Clip Technologies’ low-power photometric infrared technology for the LEL sensor and factory-calibrated electrochemical sensors for H2S, CO, and O2, which maintain their accuracy throughout the device’s operational life. Calibration can still be performed if site policy requires it or regulatory standards mandate it — the device supports calibration if needed, but doesn’t require it to maintain its performance.

Infrared LEL Sensor — Immune to H2S and Silicone Poisoning

The combustible gas (LEL) sensor in the Multi Gas Clip Simple uses photometric infrared detection technology rather than the catalytic bead (pellistor) sensors used in most portable multi-gas detectors. Catalytic bead sensors are susceptible to poisoning from hydrogen sulphide, silicone compounds, and certain other contaminants — exposure to these substances gradually reduces sensor sensitivity, eventually to the point where the sensor fails to respond to combustible gas at alarm concentrations. This degradation is often gradual and not immediately apparent without testing. The infrared LEL sensor is not affected by H2S or silicone exposure, maintaining consistent performance throughout the full 2-year device life regardless of the atmospheric conditions encountered.

Simultaneous 4-Gas Monitoring — H2S, CO, O2, LEL

The Multi Gas Clip Simple monitors all four standard atmospheric parameters simultaneously: hydrogen sulphide (H2S), carbon monoxide (CO), oxygen (O2), and combustible gas (LEL). All four readings are displayed on the large, easy-to-read screen in real time. This four-gas combination covers the full standard monitoring requirement for confined space entry, general industrial hazardous area work, and most permit-to-work monitoring protocols — providing complete atmospheric coverage in a single clip-on device.

Continuous 1-Second Data Logging

The Multi Gas Clip Simple logs gas concentration data at 1-second intervals continuously throughout its 2-year operational life. This creates a complete, uninterrupted record of every gas reading the device has taken across every shift it has been worn. For incident investigation, occupational exposure analysis, or compliance auditing, this data record is immediately available through the compatible MGC Simple Dock or MGC Simple Wall Mount Dock — providing the exposure history that regulatory and insurance investigations increasingly require without any manual record-keeping on the part of the worker or supervisor.

Works in Oxygen-Enriched and Oxygen-Deficient Environments

The Multi Gas Clip Simple’s O2 sensor is specified to function accurately across both oxygen-deficient and oxygen-enriched atmospheres — covering both the below-normal (below 19.5% Vol) and above-normal (above 23.5% Vol) oxygen conditions that represent different but equally serious hazards. The infrared LEL sensor also functions correctly in oxygen-deficient environments, where catalytic bead sensors lose accuracy because they rely on oxygen for the catalytic combustion reaction. This characteristic makes the Multi Gas Clip Simple appropriate for atmospheric monitoring in inert-blanketed environments and low-oxygen spaces where catalytic sensors would give misleading combustible gas readings.

Single-Button Operation

The Multi Gas Clip Simple operates through a single button — turning the device on and managing all primary functions through one control. This simplicity is deliberate: a device that workers can operate correctly without training or practice is a device that gets used correctly in the field. Single-button operation eliminates the risk of workers inadvertently changing settings, disabling alarms, or navigating to the wrong mode under the operational pressures of a busy shift.

Assembled in the USA

The Multi Gas Clip Simple is assembled in the United States by Gas Clip Technologies, a US-based gas detection manufacturer. For procurement teams with domestic content requirements, government contract compliance obligations, or supply chain resilience priorities, US assembly by an established gas detection manufacturer provides the documentation and traceability that these requirements demand.

Technical Specifications

Model: Multi Gas Clip Simple

Gases Monitored: H2S, CO, O2, LEL (combustible gas)

LEL Sensor Technology: Photometric infrared (immune to H2S and silicone poisoning)

H2S / CO Sensor Technology: Electrochemical

O2 Sensor Technology: Electrochemical (galvanic cell)

Display: Large, easy-to-read screen (simultaneous 4-gas display)

Battery Life / Device Life: 2 years (no charging required; sealed internal battery)

Calibration: No calibration necessary; calibration supported if required

Data Logging: Continuous 1-second interval logging throughout 2-year life

Operation: Single button

Compatible Docking: MGC Simple Dock; MGC Simple Wall Mount Dock

Assembly: USA

Warranty: 2 years

IP Rating: Not stated — confirm with supplier

Weight / Dimensions: Not stated on listing — confirm with supplier

Alarm Types: Not detailed on listing — confirm with supplier for alarm threshold specifications

Safety Approvals: Not stated on listing — confirm with supplier for hazardous area certifications applicable to your deployment environment

Wireless Connectivity: Not specified — data download via compatible dock

Benefits

For workers, the Multi Gas Clip Simple removes every daily interaction that typically creates compliance gaps: there is no charging routine to forget, no calibration appointment to miss, and no multi-button interface to misuse. The device is on and monitoring from activation. Workers clip it on at the start of the shift and it works — for two years, without interruption, without requiring anything from them beyond wearing it.

For HSE managers running personal gas monitoring programmes across large workforces, the “no charge, no calibrate” model changes the operational management burden fundamentally. Charging station management, calibration scheduling, bump test records, calibration gas procurement, and the documentation that goes with all of it — none of these are necessary as mandatory programme elements with the Multi Gas Clip Simple. The management overhead of the monitoring programme shrinks to device activation at deployment and data retrieval through the compatible dock at intervals appropriate for the site’s monitoring and incident investigation requirements.

For procurement teams, the 2-year device life model converts gas monitoring from a capital expenditure with significant ongoing operational cost (charging infrastructure, calibration gas, consumables, service contracts) to a known, fixed cost per device per 2-year period. Total cost of ownership is predictable and straightforward to calculate for fleet planning purposes — and it includes the elimination of the hidden costs of calibration non-compliance and battery failure that affect conventional detector fleets.

Who It’s For

HSE Manager — Large Industrial or Construction Workforce

You manage personal gas monitoring for a large field workforce — hundreds of workers across multiple sites, shifts, and roles. Your biggest compliance challenge isn’t the monitoring equipment itself; it’s ensuring consistent compliance across every worker, every day, across a fleet that’s constantly being charged, calibrated, and returned to service. The Multi Gas Clip Simple’s no-charge, no-calibrate model removes the two most common compliance failure points at the device level. Your programme management effort shifts from chasing charging and calibration compliance to simply confirming devices are active and being worn.

Safety Equipment Manager — Oil and Gas, Petrochemical, or Industrial Contractor

You manage gas detection equipment for a contracting organisation that deploys workers across multiple client sites with varying site access rules and equipment management processes. You need a 4-gas monitor that is always ready when a worker needs it — regardless of whether the previous user charged it correctly, whether the calibration interval was managed, or whether the device has been exposed to H2S that might have degraded a catalytic LEL sensor. The Multi Gas Clip Simple’s sealed battery, no-calibration design, and infrared LEL sensor remove all three of those variables.

Confined Space Entry Programme Coordinator

You run a confined space entry programme where every entrant must carry a calibrated, functioning 4-gas monitor. Your programme’s weakest point is the gap between “device issued” and “device confirmed compliant” — particularly on sites where calibration is managed centrally and there’s always a risk that a device has slipped past its calibration interval without detection. The Multi Gas Clip Simple’s factory-calibrated operation and 1-second continuous data logging mean the device is always compliant and the data is always there if an incident requires reconstruction of the atmospheric conditions during an entry.

Possible Applications

Oil and Gas Field Operations — Large Crew Monitoring — Upstream and midstream operations with large field crews require personal 4-gas monitoring for every worker in at-risk areas. The Multi Gas Clip Simple’s no-charge, no-calibrate model is particularly suited to large crew deployments where managing individual device compliance across a rotating workforce is a significant operational challenge.

Confined Space Entry — General Industrial and Utilities — Workers entering confined spaces in utilities, water treatment, manufacturing, and civil infrastructure require continuous 4-gas monitoring covering H2S, CO, O2, and LEL. The Multi Gas Clip Simple provides all four parameters in a device that is always ready for entry without pre-shift calibration preparation.

Construction — Tunnelling and Underground Civil Works — Underground construction workers in tunnels, culverts, and below-grade excavations face combustible gas, CO, and oxygen deficiency hazards from diesel plant and ground gases. The Multi Gas Clip Simple’s infrared LEL sensor functions correctly in the low-oxygen environments that can develop in poorly ventilated underground workings — where catalytic bead sensors would give inaccurate LEL readings.

Petrochemical and Refinery Maintenance — Contractor Management — Refineries and petrochemical plants receiving large numbers of contractor workers for turnaround maintenance need to issue compliant 4-gas monitors efficiently at scale. The Multi Gas Clip Simple’s always-ready, no-calibration design simplifies contractor equipment issuing significantly — each device is compliant from activation without requiring site-side calibration infrastructure or pre-issue preparation.

Fire Services and Emergency Response — Fire investigation and HAZMAT response personnel require 4-gas atmospheric assessment capability. The Multi Gas Clip Simple’s always-ready operation means devices stored in emergency response kits are immediately usable without checking battery status or calibration currency — a relevant advantage in time-critical emergency response situations.

Mining and Quarrying — Surface and Near-Surface Operations — Surface mining and quarrying operations where H2S and combustible gas exposure are credible hazards benefit from the Multi Gas Clip Simple’s H2S-immune infrared LEL sensor — eliminating the catalytic sensor poisoning failure mode that is a particular concern in H2S-rich mining environments.

Rental and Short-Term Hire Equipment Fleets — Equipment rental companies supplying personal gas detectors to clients for short-term project use benefit significantly from the no-calibration model — devices returned from hire are ready for immediate re-issue without calibration checks, reducing fleet turnaround time and eliminating the calibration management overhead between hire periods.

Trust & Certifications

Gas Clip Technologies — Established US Gas Detection Manufacturer

Gas Clip Technologies is a US-based gas detection company that has built its product range around the low-power, no-charge, no-calibrate concept since its founding. The Multi Gas Clip product family represents an extended history of refinement in low-power photometric infrared technology for industrial gas detection — the GCT product range is used across oil and gas, utilities, petrochemical, and construction industries globally. US assembly provides supply chain traceability and domestic content documentation for procurement programmes where these factors are specification requirements.

Photometric Infrared LEL Technology — Sensor Reliability Basis

The choice of photometric infrared technology for the combustible gas sensor is a documented technical decision that specifically addresses the poisoning vulnerability of catalytic bead sensors. The infrared detection principle does not rely on catalytic oxidation of the target gas, so it is not affected by the surface poisoning agents — H2S, silicone, lead, sulphur compounds — that progressively disable pellistor sensors. For applications where H2S and LEL monitoring are required simultaneously and where sensor poisoning is a known environmental risk, infrared LEL technology provides a documented performance advantage over catalytic alternatives.

2-Year Warranty — Full Device Life Coverage

The Multi Gas Clip Simple carries a 2-year warranty that matches its 2-year operational life — meaning the device is covered for its entire service period from activation to replacement. This full-life warranty coverage eliminates the risk of out-of-warranty sensor or device failure mid-deployment that affects conventional detectors with warranties shorter than their expected service life.

Note on Hazardous Area Certification

Hazardous area certification details (ATEX, IECEx, CSA, or equivalent) are not stated on the product listing. Buyers intending to deploy the Multi Gas Clip Simple in classified hazardous areas should confirm applicable intrinsic safety certifications with the supplier before procurement. Gas Clip Technologies’ Multi Gas Clip product range does carry hazardous area certifications — confirm the specific certification applicable to your site’s zone or division classification with our technical team.

Accessories & Variants

MGC Simple Dock

The MGC Simple Dock is a single-device docking station for the Multi Gas Clip Simple that enables data download of the device’s continuous 1-second data log, bump test management, and device health checking. For safety programmes where data extraction from individual devices is a routine compliance or incident investigation activity, the Simple Dock provides the interface between the device’s onboard log and a connected PC or safety management system.

MGC Simple Wall Mount Dock

A wall-mounted docking solution for the Multi Gas Clip Simple, enabling fixed-location data download and device management without a dedicated desk or table space. Suited to control rooms, site offices, and changing room installations where space is limited and a fixed device management point is preferred over a portable dock.

Multi Gas Clip Simple — Standard 4-Gas Configuration

H2S / CO / O2 / LEL — the standard configuration covering the four parameters required for confined space entry and general industrial 4-gas monitoring.

Contact our technical team to confirm current available configurations, hazardous area certification details, and compatibility with your site’s monitoring and data management infrastructure before procurement.
