Overview
Multi-gas monitoring requirements in industrial environments have evolved beyond the four-parameter standard. As workplaces grow more chemically complex — handling a wider range of process gases, dealing with VOC exposure alongside conventional LEL and toxic hazards, and operating across environments where CO2, SO2, NH3, or Cl2 may be present alongside the standard four — the expectation of what a personal gas monitor needs to cover has grown with them. A four-gas monitor that covers LEL, O2, H2S, and CO is a necessary baseline. For many modern industrial applications, it’s not a sufficient one.

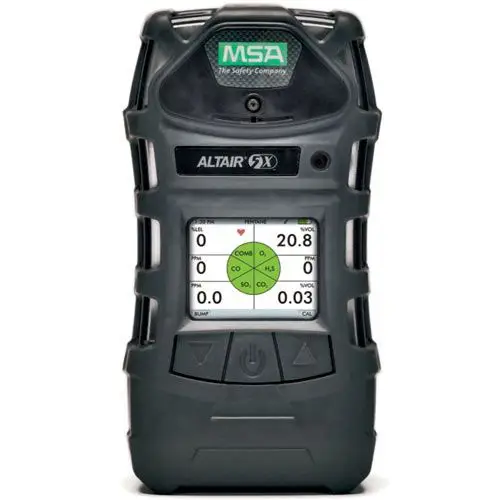

The MSA ALTAIR 5X PID Multi Gas Detector steps beyond that baseline. Capable of measuring up to six gases simultaneously — including volatile organic compounds (VOCs) via an integrated PID sensor — the ALTAIR 5X is built on the same MSA XCell® sensor platform that underpins the ALTAIR 4/4X, with the added capability of an integral sampling pump, colour display, Bluetooth connectivity, and Motion-Alert lone worker protection. It’s a device designed for environments and applications where four-gas coverage is not enough, and where the monitoring instrument also needs to serve as a connected safety device rather than a standalone alarm.
The concrete differentiator that sets the ALTAIR 5X apart from other 5 or 6-gas portables in the market is MSA’s proprietary XCell® sensor technology combined with a field-proven integral pump — not an externally attached pump accessory that adds bulk and failure points, but a pump integrated into the instrument housing. The integral pump provides consistent gas flow to the sensor array without the reliability concerns of external attachments, enabling both continuous personal monitoring and remote sampling from the same instrument without configuration changes or accessory fumbling in the field.
Key Features
Up to 6-Gas Simultaneous Monitoring Including VOCs via PID
The ALTAIR 5X can simultaneously monitor up to six atmospheric parameters depending on sensor configuration. The standard 5-in-1 configuration (part number A-ALT5XM) covers LEL, O2, CO, H2S, and VOCs via the integrated PID sensor. Extended configurations add a sixth gas channel for CO2, SO2, NH3, Cl2, or other gases relevant to the specific application hazard profile. The inclusion of an integrated PID sensor for VOC detection — rather than offering it as an optional sensor swap — means VOC monitoring is always present in the instrument without requiring a separate device or sensor configuration change for applications where VOC exposure is a regular monitoring requirement.
Integral Sampling Pump — Consistent Flow, No External Components
The ALTAIR 5X’s sampling pump is integrated into the instrument body — not an externally attached accessory. This design decision has practical consequences: there are no external pump components to forget, lose, or damage; the pump draws a consistent, controlled gas flow to the sensor array throughout operation; and the instrument is ready for both diffusion-mode personal monitoring and active remote sampling without physical reconfiguration. The listing explicitly notes that the integral pump eliminates the concerns of externally-attached components — a reference to the reliability and field practicality problems that external pump attachments can create during active field use.
MSA XCell® Sensors — Extended Service Life (3+ Years Typical)
The ALTAIR 5X is equipped with MSA XCell® sensors across all monitored gas channels. For the standard sensor types — combustible (LEL), O2, CO/H2S, SO2, and CO/NO2 — XCell sensor life is typically greater than three years, substantially longer than the 2-year typical service life of most third-party electrochemical sensors used in competing instruments. Longer sensor life reduces the frequency and cost of sensor replacements across a fleet deployment, and XCell sensors are backed by MSA’s instrument warranty rather than a separate, shorter sensor warranty from a third-party supplier.
Bluetooth Connectivity — Scalable Wireless Without Infrastructure Investment
The ALTAIR 5X includes integrated Bluetooth connectivity that enables data transmission to MSA’s connected safety ecosystem without requiring investment in site-specific wireless infrastructure. MSA’s integrated Bluetooth enables real-time data sharing with the MSA Connected Work Cell (or compatible platform), supporting remote monitoring of worker status, alarm events, and gas readings from a central location. The product listing specifically notes that Bluetooth connectivity enables scalable solutions that eliminate the need for costly investments in wireless infrastructure — a meaningful practical consideration for organisations that need connected monitoring capability without the capital commitment of a site-wide wireless network installation.
Motion-Alert Lone Worker Protection
The standard ALTAIR 5X configuration (A-ALT5XM) includes Motion-Alert — an accelerometer-based lone worker protection function that detects when the device has been motionless for a defined period and escalates through a warning alarm before triggering a full distress alarm if no response is received. For lone workers in isolated locations, confined spaces, or situations where a gas event or physical incapacitation could leave them unable to summon help, Motion-Alert provides an automated check-in function that activates when the device detects no movement — combining gas detection and lone worker protection in a single instrument.
Colour Screen Display
The ALTAIR 5X features a colour screen that displays gas readings, alarm status, and device information in a format that uses colour coding to communicate alarm state immediately — normal readings in one colour, alarm states in another — without requiring the worker to interpret numerical values against alarm thresholds under operational pressure. In a multi-gas instrument displaying up to six simultaneous readings, colour differentiation between normal and alarm states significantly improves the speed and accuracy of the worker’s situational assessment, particularly in low-light conditions where monochrome displays lose contrast.
IP65 Rated — Survives 3m (10ft) Drop
The ALTAIR 5X’s rugged overmoulded polycarbonate housing is IP65 certified — fully dustproof and protected against water jets from any direction — and documented to survive a 10-foot (3m) drop. For workers in mining, construction, oil and gas, and confined space entry environments where the instrument will be subjected to physical impacts, drops, and environmental exposure throughout its service life, IP65 certification and a demonstrated drop survival rating provide documented evidence of field durability rather than a general claim of ruggedness.
Technical Specifications
Model: MSA ALTAIR 5X PID
Part Number: A-ALT5XM
Order Description: ALTAIR 5X PID, 5-in-1 Multigas Detector with Motion-Alert and LEL/O2/CO/H2S/VOC sensors, Black
Gases Monitored: Up to 6 simultaneously: LEL (%Vol option available), O2, CO, H2S, VOCs (PID), plus optional 6th gas (CO2, SO2, NH3, Cl2, and others depending on configuration)
Sensor Technology: MSA XCell® (typical life >3 years for LEL, O2, CO/H2S, SO2, CO/NO2 sensors)
Display: Colour screen
Sampling Method: Integral pump (field-proven, consistent gas flow)
IP Rating: IP65
Drop Resistance: Survives 10ft (3m) drop
Wireless Connectivity: Bluetooth (integrated)
Lone Worker Protection: Motion-Alert (included in A-ALT5XM configuration)
Alarm Types: Gas alarms (multi-level); Motion-Alert distress alarm — confirm full alarm specification with supplier
Battery Life: Not stated on listing — confirm with supplier
Safety Approvals: Confirm with supplier — MSA ALTAIR 5X platform carries ATEX, IECEx, CSA, and UL certifications depending on regional variant
Response Time: Faster than standard (XCell sensor technology) — confirm specific T90 values with supplier
Weight / Dimensions: Not stated on listing — confirm with supplier
Data Logging: Via Bluetooth connected platform or MSA data management system — confirm with supplier
Warranty: Confirm with supplier — MSA ALTAIR platform XCell sensor warranty details apply
Benefits
For workers in environments with complex multi-gas hazard profiles — where VOC exposure sits alongside conventional LEL, O2, H2S, and CO monitoring requirements — the ALTAIR 5X eliminates the instrument compromise that a four-gas monitor forces. Rather than carrying a 4-gas device and a separate PID monitor, the ALTAIR 5X covers all monitored parameters in a single, integrated instrument with a single alarm system, a single data record, and a single battery to manage. That consolidation reduces the physical equipment burden and eliminates the coordination problem of managing two separate alarm systems simultaneously in a gas event.
For lone workers and their supervisors, the Motion-Alert function changes the safety profile of isolated work from “worker must summon help” to “device raises alert if worker cannot respond.” In a confined space gas event where a worker loses consciousness before they can activate a manual distress signal, Motion-Alert provides an automated escalation that reaches a supervisor or monitoring centre. Combined with Bluetooth connectivity for real-time status transmission, the ALTAIR 5X functions as a connected lone worker safety device as well as a gas monitor — without requiring a separate lone worker device to be carried alongside it.
For procurement teams managing instrument fleets across large industrial workforces, the XCell sensor life of greater than three years means the total cost of sensor replacements across a multi-year deployment is substantially lower than with instruments using shorter-life third-party sensors. Combined with Bluetooth data management that reduces manual record-keeping overhead, the ALTAIR 5X’s total cost of ownership case over a 3–5 year fleet lifecycle is competitive with simpler 4-gas alternatives once sensor replacement costs and compliance administration are factored in.
Who It’s For
HSE Manager — Petrochemical, Pharmaceutical, or Chemical Manufacturing
Your workforce encounters a complex gas hazard profile that includes VOC exposure alongside conventional LEL and toxic gas hazards. You’ve been running 4-gas monitors for the LEL/O2/H2S/CO coverage and periodic PID surveys for the VOC element — but the surveys only capture point-in-time readings rather than the continuous exposure data your occupational health programme needs. The ALTAIR 5X’s integrated PID sensor provides continuous VOC monitoring throughout the shift, in the same instrument as the 4-gas coverage, with all readings in a single data record accessible through Bluetooth connectivity.
Confined Space Entry Supervisor — Lone Worker and Multi-Hazard Environments
You manage entry into confined spaces where the hazard profile extends beyond the standard four gases — areas where VOC exposure is a credible risk alongside the atmospheric hazards. You also have lone worker duty of care responsibilities for workers operating in isolated confined spaces during extended work tasks. The ALTAIR 5X’s 5-in-1 configuration with VOC monitoring and Motion-Alert addresses both the extended gas monitoring requirement and the lone worker safety requirement in a single instrument your team carries anyway.
Safety Officer — Oil and Gas or Industrial Plant Maintenance
You’re responsible for equipping maintenance teams for planned shutdowns and turnaround activities on complex industrial plant where the gas hazard inventory is longer than LEL, O2, H2S, and CO — where process-specific gases like SO2, NH3, or Cl2 may be present in specific work areas, and where VOC exposure from solvents or process residues adds an additional monitoring requirement. The ALTAIR 5X’s up-to-6-gas configuration and wide sensor option range allow precise specification to the hazard profile of each maintenance zone rather than accepting a standard 4-gas configuration that doesn’t fully cover the site’s gas inventory.
Possible Applications
Confined Space Entry — Multi-Gas Hazard Environments — The ALTAIR 5X’s standard 5-in-1 LEL/O2/CO/H2S/VOC configuration and integral pump cover the full atmospheric monitoring requirement for confined space entry in environments where VOC exposure is an additional hazard beyond the standard four parameters.
Petrochemical and Refinery Plant Maintenance — Extended Gas Coverage — Turnaround maintenance on petrochemical plant involves work in areas with process-specific gas hazards that extend beyond the standard four. The ALTAIR 5X’s 6th gas channel option for SO2, NH3, Cl2, or other process-specific gases allows configuration to the exact hazard profile of each work area.
Pharmaceutical Manufacturing — VOC and Solvent Monitoring — Pharmaceutical production workers handling organic solvents require continuous VOC monitoring alongside standard atmospheric monitoring. The ALTAIR 5X’s integrated PID sensor provides continuous fixed-point VOC readings throughout the shift in the same instrument as the LEL/O2/CO/H2S coverage.
Environmental Monitoring and Remediation — Environmental field technicians working on contaminated land, soil remediation, or waste management sites encounter varied and unpredictable gas hazard profiles that often include VOCs, H2S, methane, and oxygen deficiency simultaneously. The ALTAIR 5X’s 6-gas capability and integral pump support comprehensive atmospheric monitoring in these variable environments.
Lone Worker Safety — Remote Industrial Operations — Workers operating alone in remote plant areas, isolated process zones, or extended overnight maintenance shifts benefit from the ALTAIR 5X’s Motion-Alert function combined with Bluetooth connectivity — providing gas detection and automated lone worker check-in in a single wearable device.
Water Treatment — Chlorine and Multi-Gas Monitoring — Water treatment operators working with chlorination systems face Cl2 exposure alongside the standard atmospheric hazards. The ALTAIR 5X’s configurable 6th gas channel accommodates Cl2 monitoring as an addition to the standard LEL/O2/CO/H2S coverage.
Emergency Response and HAZMAT — Comprehensive Atmospheric Assessment — HAZMAT responders and fire investigation teams require comprehensive multi-gas detection capability for rapid atmospheric assessment at incident scenes. The ALTAIR 5X’s up-to-6-gas coverage and integral pump for remote sampling provide the multi-parameter detection and remote assessment capability needed for time-critical incident response.
Trust & Certifications
MSA Safety — 110+ Years of Industrial Safety Heritage
MSA Safety’s founding in 1914 and its sustained role as a primary safety equipment manufacturer across mining, industrial, and emergency response sectors gives the ALTAIR platform a depth of institutional credibility that newer entrants to the gas detection market cannot replicate. The ALTAIR product family represents decades of continuous development within MSA’s instrumentation range — and the ALTAIR 5X’s XCell sensor technology and Bluetooth connectivity represent current-generation development within that established platform, not a ground-up departure from proven technology.
MSA XCell® Sensor Technology — 3+ Year Typical Sensor Life
XCell sensors are designed and manufactured by MSA — not sourced from third-party sensor suppliers — giving MSA end-to-end control over sensor performance, quality, and the performance specifications they can warrant. A typical sensor life of greater than three years for the primary sensor types is a documented performance claim from the sensor’s manufacturer, not an extrapolation from third-party component data. For procurement teams calculating sensor replacement costs across a multi-year fleet deployment, the 3+ year XCell sensor life provides a longer replacement interval than the 2-year typical life of most competing sensor types.
IP65 Certification and 3m Drop Rating
IP65 certification provides independently verified full dustproof protection and resistance to water jets from any direction. The 10-foot (3m) drop survival rating — documented in MSA’s product specifications — provides an independently assessed mechanical durability benchmark that supports the “toughest” durability claim with a specific, testable performance figure rather than a general marketing statement.
Safety Approvals — ATEX, IECEx, CSA, UL (Regional Variant Dependent)
The MSA ALTAIR 5X platform carries hazardous area certifications across multiple regulatory jurisdictions — ATEX and IECEx for European and international hazardous area deployments, and CSA/UL for North American hazardous locations. Specific certification details should be confirmed with the supplier for the exact variant and regional configuration required, as certification applicability can vary between sensor configurations and markets.
Accessories & Variants
Part Number A-ALT5XM — Standard 5-in-1 Configuration (Featured)
LEL / O2 / CO / H2S / VOC (PID) with Motion-Alert, colour screen, Bluetooth, integral pump. Black housing. This is the standard configuration described in this listing.
6-Gas Configuration Options
A sixth gas channel can be added to the standard 5-in-1 configuration for CO2, SO2 (sulphur dioxide), NH3 (ammonia), Cl2 (chlorine), and other gases depending on sensor availability. Contact our technical team to confirm 6th gas sensor options and the correct part number for your specific configuration.
MSA Connected Work Cell / Bluetooth Data Platform
MSA’s connected safety ecosystem enables real-time monitoring of worker gas readings, alarm status, and Motion-Alert events from a central monitoring location via the ALTAIR 5X’s integrated Bluetooth. Contact MSA or our technical team for current platform compatibility and subscription requirements for connected monitoring deployment.
MSA Galaxy GX2 Automated Test System
MSA’s automated bump test and calibration management system for the ALTAIR platform. Automates bump test and calibration workflows for the ALTAIR 5X, generating electronic compliance records for each device in the fleet. Particularly valuable for large fleets where manual calibration scheduling and record-keeping creates significant administrative overhead.
Calibration Gas (5 or 6-Gas Mix)
Certified multi-gas calibration mixtures for bump testing and full span calibration of all active sensor channels. Gas mix composition should match the specific sensor configuration of the ALTAIR 5X being calibrated — confirm with the supplier at procurement stage for fleet-scale calibration gas supply.
Request a Quote or Technical Consultation
If you’re specifying multi-gas portable detectors for applications where four-gas coverage is not sufficient — where VOC monitoring, extended toxic gas coverage, integrated lone worker protection, or Bluetooth connected safety is part of your requirement — the MSA ALTAIR 5X PID is worth a detailed evaluation against your specific sensor configuration and deployment needs.
Speak with our safety equipment team to discuss sensor configuration for your gas hazard profile, confirm the appropriate part number for your application, clarify hazardous area certification requirements for your deployment zone, or request pricing for individual units or fleet quantities. We work directly with HSE managers, safety programme owners, and procurement leads across the full range of industries the ALTAIR 5X is designed to serve.
