Overview
Every fire safety plan depends on two things: having the right extinguisher and making sure it’s exactly where it needs to be when seconds count. A fire extinguisher left on the floor, propped against a wall, or stored in the wrong location is a compliance failure waiting to happen — and in a real emergency, a misplaced extinguisher can cost lives. That’s the problem the Fire Extinguisher Bracket (L Hook) is designed to solve.
This heavy-duty L-shaped wall mount bracket keeps your fire extinguisher securely positioned at the correct height, in the correct location, and consistently accessible — whether you’re equipping a factory floor, a commercial kitchen, a server room, or a construction site. Engineered for reliable everyday use in demanding environments, these brackets are built to hold firm against vibration, accidental knocks, and the general wear of active workplaces.
What sets this range apart from generic mounting hardware is the size-matched variant system. Rather than a one-size-fits-all approach that results in poorly secured cylinders, each bracket variant is designed to match a specific extinguisher weight class — ensuring a secure, stable fit for 1 KG through 12 KG ABC powder extinguishers and CO2 cylinders. For procurement teams outfitting mixed-type fire safety installations, this means sourcing the right bracket for every extinguisher in your inventory without compromise.
Key Features
Size-Matched Variants for Every Extinguisher Weight Class

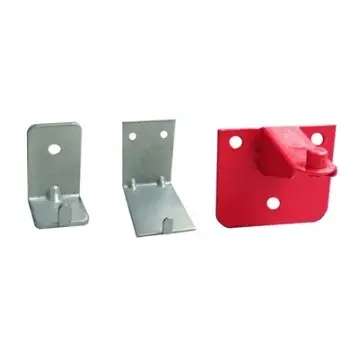

The L Hook bracket range covers four extinguisher weight classes: 1–3 KG ABC (FEA-K-BRK01), 4 KG ABC (FEA-K-BRK02), 6–12 KG ABC (FEA-K-BRK04), and CO2 cylinders (FEA-K-BRK03). Each variant is proportioned to match the cylinder diameter and weight of its target extinguisher class — providing a secure, properly fitted mount rather than a loose or over-stressed fit. For safety managers specifying brackets across a multi-type extinguisher installation, the correct part number selection ensures every extinguisher is properly supported.
L-Hook Design — Secure Grip Without Permanent Fixturing of the Cylinder
The L-hook geometry holds the extinguisher cylinder securely against the wall while allowing it to be lifted out quickly in an emergency — no release mechanism, no fumbling with clips or clasps under pressure. This is the standard mounting configuration recommended for accessible fire safety equipment because it keeps the extinguisher firmly in place during normal conditions while ensuring it can be deployed immediately when needed. For environments where fast access is critical — production floors, corridors, server rooms, kitchens — the L-hook mount provides the right balance of security and instant accessibility.
Heavy-Duty Metal Construction
The brackets are manufactured from formed metal — available in raw steel finish and in red powder-coated finish — providing the structural strength to support extinguisher cylinders in permanent wall-mounted installations. The red-coated variant is particularly suited to high-visibility safety installations where the bracket itself contributes to the visual identification of the fire safety point. Metal construction also ensures durability in industrial, commercial, and outdoor-adjacent environments where plastic mounts may degrade under UV exposure, temperature cycling, or chemical contamination.
Standard Wall-Mount Fixing Pattern
The bracket fixes to any standard masonry, concrete, brick, plasterboard, or timber-framed wall using a two-hole fixing pattern through the bracket’s mounting plate. No specialist installation tools or fixings are required beyond standard wall plugs and screws appropriate for the wall substrate. This makes the bracket suitable for rapid installation across large-scale multi-point fire safety layouts — a significant advantage for contractors and safety officers specifying and installing fire extinguisher mounting across new or refurbished facilities.
CO2 Extinguisher Variant (FEA-K-BRK03)
CO2 extinguishers have a different cylinder profile and weight distribution from ABC powder extinguishers — a bracket designed for ABC cylinders will not provide a secure fit for CO2 units. The FEA-K-BRK03 variant is specifically sized for carbon dioxide extinguisher cylinders, ensuring the same secure wall-mount fit for CO2 units as the ABC variants provide for powder extinguishers. For facilities using a combination of ABC and CO2 extinguishers — common in mixed commercial and server-room or electrical-installation environments — the correct variant selection ensures every extinguisher is properly mounted.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Fire Extinguisher Bracket (L Hook) |
| Part No. — 1 & 2 KG ABC | FEA-K-BRK01 |
| Part No. — 3 KG ABC | FEA-K-BRK01 |
| Part No. — 4 KG ABC | FEA-K-BRK02 |
| Part No. — 6, 9 & 12 KG ABC | FEA-K-BRK04 |
| Part No. — CO₂ Extinguisher | FEA-K-BRK03 |
| Mount Type | L Hook Wall Bracket |
| Material | Formed Steel (raw and red powder-coated finish available) |
| Compatible Extinguisher Types | ABC Dry Powder, Carbon Dioxide (CO₂) |
| Cylinder Weight Range Covered | 1 KG to 12 KG (ABC); CO₂ cylinders (dedicated variant) |
| Fixing Method | Wall-mount, standard two-hole fixing plate |
| Product Category | Fire Extinguishers & Accessories |
Benefits
Guaranteed extinguisher accessibility — every time, every inspection. A fire extinguisher that isn’t mounted is a fire extinguisher that may not be found. L hook brackets fix extinguishers at the required height and location, ensuring consistent accessibility for both emergency use and routine inspection. For HSE officers managing regular fire safety audits, wall-mounted extinguishers eliminate the compliance risk of displaced or unsecured units.
Compliance with fire safety mounting requirements. Most regional fire safety regulations and standards — including BS 5306 in the UK, NFPA 10 in North America, and local fire codes across Southeast Asia and the Gulf — specify that portable fire extinguishers must be mounted on walls or approved stands at defined heights. Using a proper wall bracket directly supports compliance with these requirements and reduces the risk of failed fire safety audits or enforcement action.
Reduced risk of cylinder damage and safety incidents. An extinguisher stored on the floor or in an unsecured position is vulnerable to being knocked over, dropped, or damaged — which can compromise the cylinder integrity and the extinguishing agent charge. Wall-mounted brackets eliminate this risk, protecting both the equipment and the people working around it.
Simplified multi-point fire safety layout management. For procurement teams and safety officers specifying fire extinguisher installations across large facilities with multiple extinguisher types and sizes, the size-matched bracket range simplifies specification — each extinguisher type has a defined, compatible bracket part number, eliminating guesswork and reducing the risk of mismatched or poorly fitted mounts across a large installation.
Fast installation across any wall substrate. Standard two-hole fixing plate allows quick installation on masonry, concrete, brick, or stud walls using common fixings — reducing installation time and labour cost on large-scale fire safety fit-outs, periodic bracket replacements, or fire safety equipment upgrades across multiple sites.
Who It’s For
The HSE Officer or Fire Safety Manager
You’re responsible for fire safety compliance across a manufacturing plant, logistics warehouse, or commercial facility. During your last fire safety audit, several extinguishers were noted as not properly secured to walls — a minor finding this time, but one that could escalate to an enforcement notice if not addressed before the next inspection. You need a reliable supply of correctly sized wall brackets to mount every extinguisher in your facility to the required standard, with the right bracket matched to each extinguisher size. The L Hook bracket range gives you a clear part number for every extinguisher size in your inventory — ABC 1 KG through 12 KG and CO2 — so you can specify and procure the complete bracket set in one order.
The Procurement Specialist at a Facilities Management Company
You manage fire safety equipment procurement for a portfolio of commercial properties — office buildings, retail units, car parks, and mixed-use developments. Each property has a combination of ABC and CO2 extinguishers in various sizes, and you need to ensure that every extinguisher across the portfolio is properly wall-mounted and bracket-compliant. You need a supplier who can provide the full range of L hook bracket sizes against confirmed part numbers, with reliable availability for both initial fit-out orders and ongoing replacement bracket supply as your portfolio grows.
The Fire Safety Contractor or Installer
You install and service fire extinguisher systems across residential, commercial, and industrial sites. A significant part of every installation is mounting the extinguishers correctly — right height, right bracket, properly secured. You need brackets that are consistently available, correctly sized for the extinguisher you’re mounting, and straightforward to install. The L Hook range’s standard wall-fixing pattern means fast, consistent installation across every site, and the size-matched variant system means you always have the right bracket for the cylinder you’re mounting.
Possible Applications
- Manufacturing plants and industrial facilities — Wall-mounting ABC powder extinguishers at designated fire points across production floors, warehouses, and loading bays where extinguishers must be accessible at all times and protected from industrial floor traffic
- Commercial office buildings and retail units — Mounting 1–4 KG ABC extinguishers in corridors, stairwells, reception areas, and server rooms to meet fire safety regulations and building management compliance requirements
- Data centres and server rooms — Mounting CO2 extinguishers (FEA-K-BRK03) at fire points within electrical equipment rooms where CO2 is the appropriate extinguishing agent for Class E electrical fires
- Commercial kitchens and food production facilities — Securing extinguishers at designated kitchen fire points where wall mounting keeps extinguishers accessible to kitchen staff while protecting them from grease, steam, and floor cleaning operations
- Construction sites and temporary site offices — Wall or hoarding mounting of ABC extinguishers across construction site fire points where portable extinguisher accessibility is a site safety and regulatory requirement
- Marine and offshore installations — Securing portable extinguishers on vessel bulkheads and offshore platform decks where vibration and movement make proper wall-mounting critical for cylinder security
- Hospitals, clinics, and healthcare facilities — Mounting extinguishers at fire points in patient areas, corridors, and plant rooms to meet healthcare facility fire safety compliance standards
- Multi-site facilities management and property portfolios — Standardised bracket procurement across commercial property portfolios where consistent, compliant fire extinguisher mounting is required across multiple buildings and tenancy types
Trust and Certifications
Fire Safety Accessory Standards Compliance
Fire extinguisher mounting brackets used in commercial and industrial fire safety installations should be appropriate for the extinguisher weight class they are supporting. The L Hook bracket range is designed and sized to provide a secure wall mount for the specific extinguisher weight classes covered by each variant — ensuring that the bracket provides the structural support and secure retention required for reliable fire safety equipment positioning.
Compatibility with Fire Safety Regulations and Standards
Requirements for fire extinguisher wall mounting are defined in regional fire safety regulations and standards — including BS 5306-8 (UK), NFPA 10 (North America), SS 578 (Singapore), and local Civil Defence and fire authority requirements across the Gulf, Southeast Asia, and other markets. Wall-mounting extinguishers using appropriate brackets is a standard requirement of these frameworks. The L Hook bracket range supports compliance with wall-mounting requirements by providing a purpose-designed, size-matched mounting solution for portable fire extinguishers.
Supplied by Alright Engineering Solutions
The Fire Extinguisher Bracket (L Hook) range is supplied through Alright Engineering Solutions Pte. Ltd., a fire safety and gas detection equipment distributor based in Singapore. Alright Engineering Solutions supplies fire extinguisher accessories, portable gas detectors, fixed gas detection systems, and related safety equipment to industrial, commercial, marine, and offshore clients across Singapore and the regional market.
Part of the FEA Fire Extinguisher Accessories Range
The L Hook bracket range is part of the broader FEA (Fire Extinguisher Accessories) product line — a range of compatible fire extinguisher mounting and signage accessories designed to support complete, compliant fire extinguisher installations. As a specialist fire safety equipment supplier, Alright Engineering Solutions can assist with specifying the complete accessory set for new or upgraded fire extinguisher installations.
Accessories and Variants
Available Bracket Variants — Part Number Reference
FEA-K-BRK01 — L Bracket for 1 KG, 2 KG, and 3 KG ABC Dry Powder Extinguishers
FEA-K-BRK02 — L Bracket for 4 KG ABC Dry Powder Extinguishers
FEA-K-BRK03 — L Bracket for Carbon Dioxide (CO₂) Extinguishers
FEA-K-BRK04 — L Bracket for 6 KG, 9 KG, and 12 KG ABC Dry Powder Extinguishers
Compatible Fire Extinguisher Accessories
Fire Extinguisher ID Signs and Location Markers — Wall-mounted identification signs that mark the fire extinguisher location, improving visibility of fire safety points and supporting compliance with fire safety signage requirements in commercial and industrial facilities
Fire Extinguisher Stands — Free-standing floor stands for locations where wall mounting is not practicable — open floor areas, temporary installations, or locations where wall fixings cannot be made
Fire Extinguisher Cabinets — Enclosed wall or recessed cabinets for extinguisher storage in public-access areas where extinguisher protection and visibility are both required
Related Fire Safety Products from Alright Engineering Solutions
ABC Dry Powder Fire Extinguishers (1 KG – 12 KG) — Complete portable extinguishers compatible with the FEA-K-BRK01, BRK02, and BRK04 bracket range
Carbon Dioxide (CO₂) Fire Extinguishers — Complete CO₂ cylinder extinguishers compatible with the FEA-K-BRK03 bracket
Fixed Gas Detection Systems — Stationary gas detection and alarm systems for industrial facilities, offshore platforms, and marine installations — complementing portable fire safety equipment in comprehensive facility safety programmes
Get in Touch
If you need to source Fire Extinguisher L Hook Brackets — whether for a single facility fit-out, a multi-site facilities management procurement, or an ongoing fire safety maintenance programme — contact Alright Engineering Solutions to confirm part number availability and request a formal quotation.
Our team can assist with bracket size selection for your specific extinguisher types and sizes, and can supply the complete range of fire extinguisher accessories to support your installation requirements.
📍 3791 Jalan Bukit Merah #06-01, E-Centre @ Redhill, Singapore 159471
