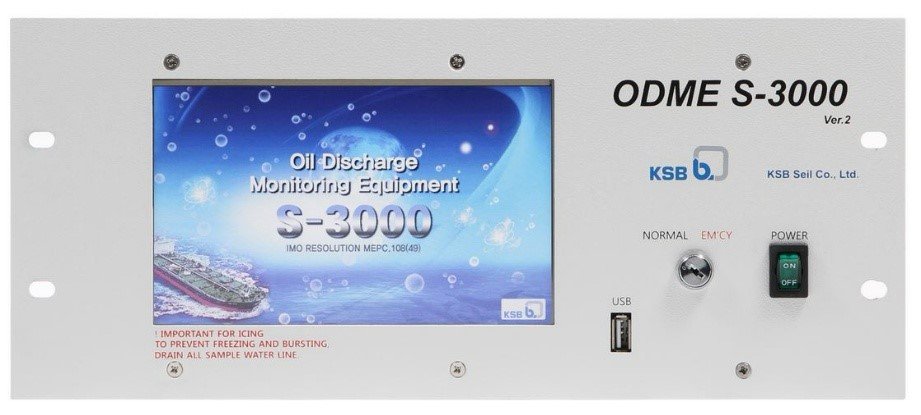

S-3000 Ver.2-Oli Discharge Monitoring Equipment

The Oil Discharge Monitoring Equipment(ODME) S-3000
continuously samples the oil-mixture water being discharged overboard, measures the oil content and controls the discharge of the oil-mixture water and plays therefore a central role in the O.D.M.E. The ODME S-3000 has been tested and approved for crude oils, “black” and “white” products as per IMO Resolution MEPC. 108(49). And it has also been tested and approved for the blends of petroleum oil and bio-fuels as given in

IMO Resolution MEPC. 108(49) & MEPC.240(65). – The U-seal must be installed in accordance with MEPC
108(49) 6.3.10, ‘Sample water returning to the slop tank should not be allowed to free-fall in to the tank. In tankers equipped with an inert gas system a U-seal of adequate height should be arranged in the piping leading to a slop.

Product Specifications

Type Parameter
Size:
  • 151 × 151 × 130, 2 kg
Measuring range:
  • 0~16 bar
Pump:
  • 2.2 kW, D.O.L Motor, centrifugal type pump, max. pump suction head of 8 m
Bulkhead penetration:
  • Class certified
Optical fibers:
  • 4
Self cleaning system:
  • Yes
Pneumatic valves:
  • 4
Sample water filter:
  • Yes
Air supply:
  • 4~9 bar
Flowmeter:
  • 311 × 104 × 102, 9 kg, Pitot-tube type probe, intrinsically safe type
Accuracy:
  • Below ±1%
LCD
  • 40 x 4
Communication:
  • Current loop method between operators console and oil content meter
Vibration and motion:
  • Insensitive
Installation:
  • Easy, requiring little work and time
