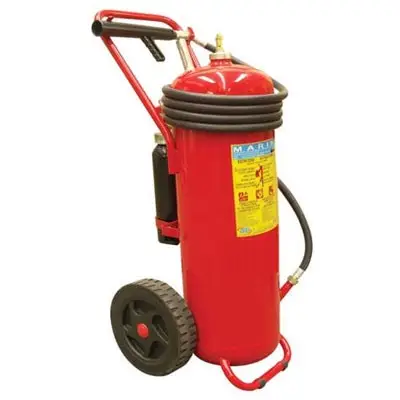

ABS 25 KG / 50 KG / 100 KG ABC Trolley Cartridge
The ABS Dry Powder trolley fire extinguisher is used to fight all common classes of fire.
Onboard a ship, weeks away from land workshops, this fire extinguisher does not require a workshop to refill or maintain. Upon discharge, the crew can simply refill the fire extinguisher with spare powder and replace the used cartridge with a new piece. A wide cylinder opening allows crew to easily check the state of the powder with the help of an adjustable spanner.
Rigorous testing ensure that the ABS Dry Powder Fire Trolley Extinguisher is suitable to the most hostile environments including onboard vessels, coastal installations, oil rigs and more.
| Model | 14134 | 14163 | 14166 |
|---|---|---|---|
| Extinguish Agent | 25KG ABC | 50KG ABC | 100KG ABC |
| Test Standard | EN1866 | EN1866 | EN1866 |
| Propellant | 3LTR CO2 Cart | 3LTR CO2 Cart | 5.4LTR CO2 Cart |
| Discharge Distance | 11M | 11M | 12M |
| App Discharge Time | 25 Sec | 41 Sec | 99 Sec |
| Height | 1020mm | 1050mm | 1290mm |
| Width | 430mm | 450mm | 540mm |
| Depth | 535mm | 550mm | 700mm |
| App Total Weight | 60KG | 85KG | 120KG |
| Operate Temperature | -30°C to 60°C | -30°C to 60°C | -30°C to 60°C |
| Working Pressure | 14 Bar | 14 Bar | 14 Bar |
| Test Pressure | 30 Bar | 30 Bar | 30 Bar |
| Fire Rating | 233 IV B | 233 IV B | 233 IV B |
| Part No | FEM-ABDC25 | FEM-ABDC50 | FEM-ABDC100 |
